Beam Load Equations

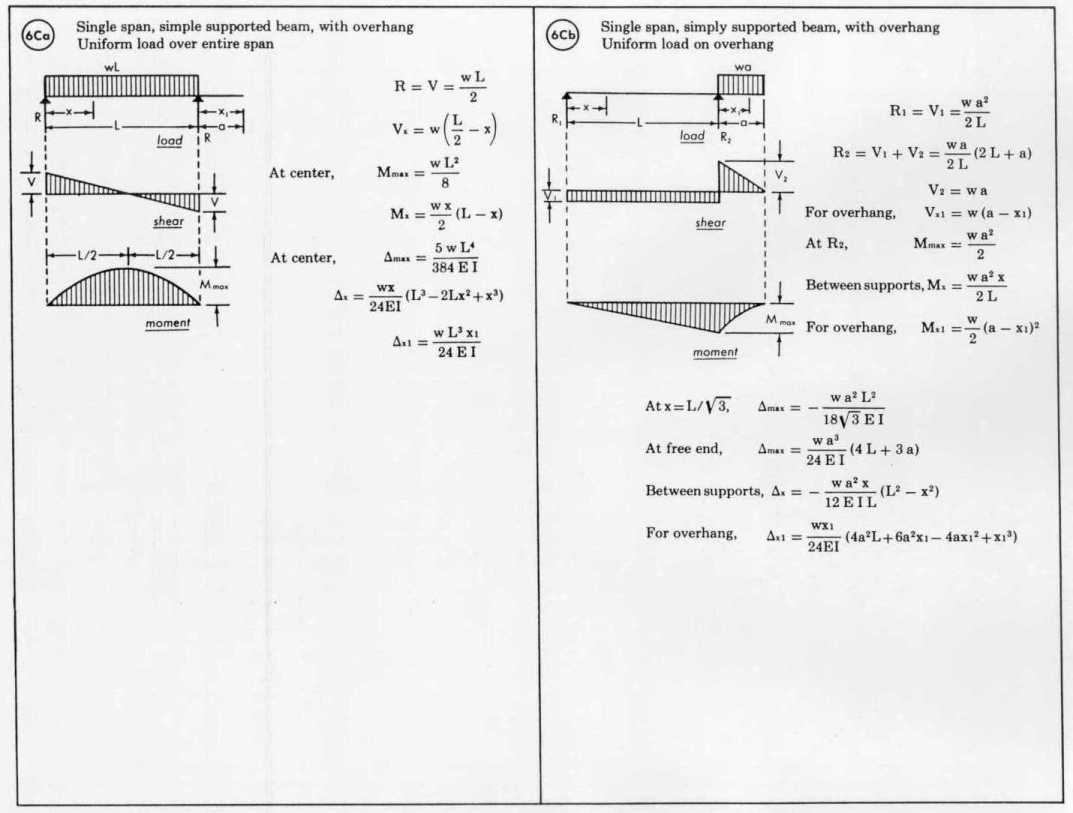

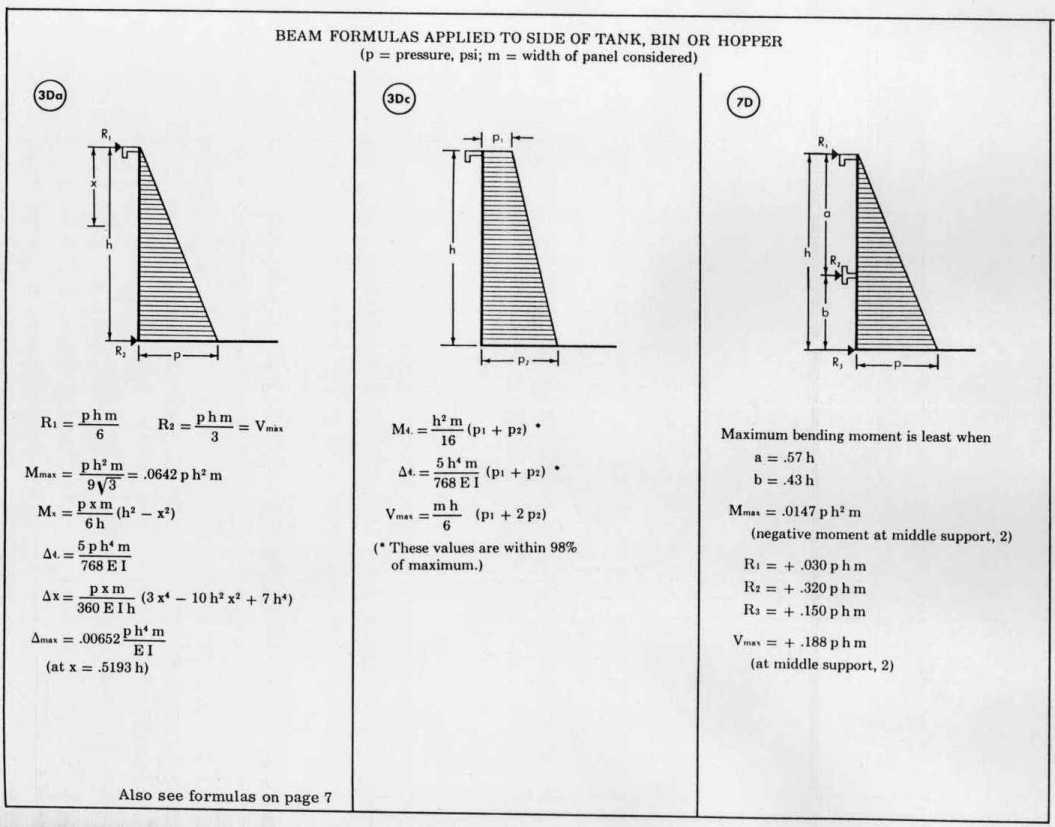

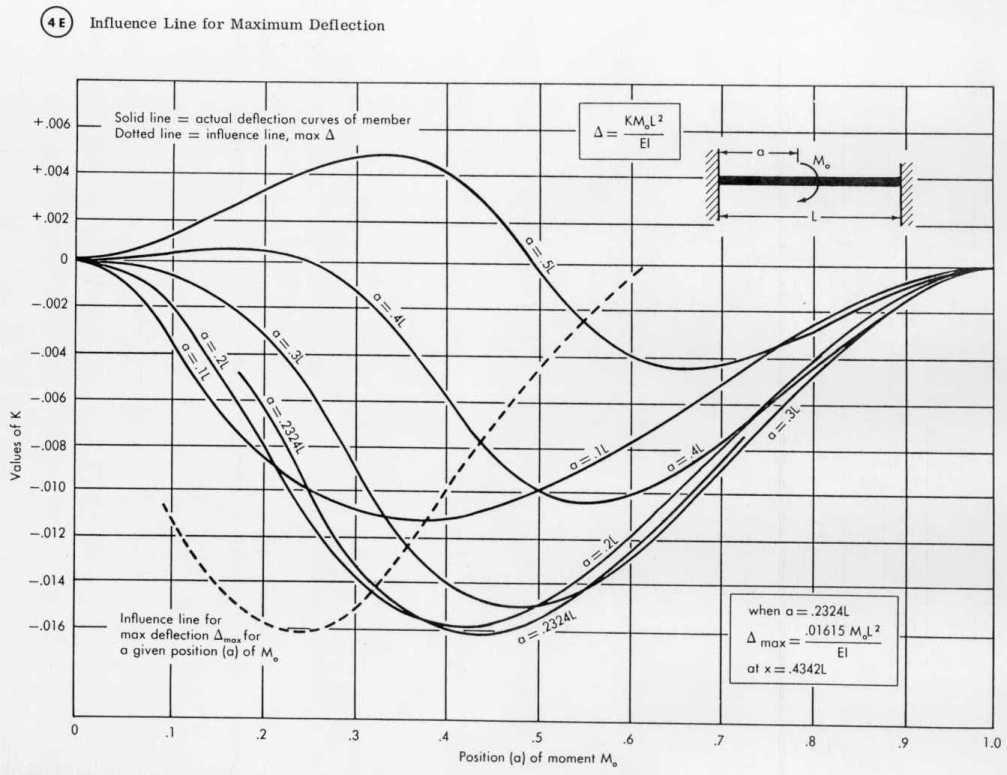

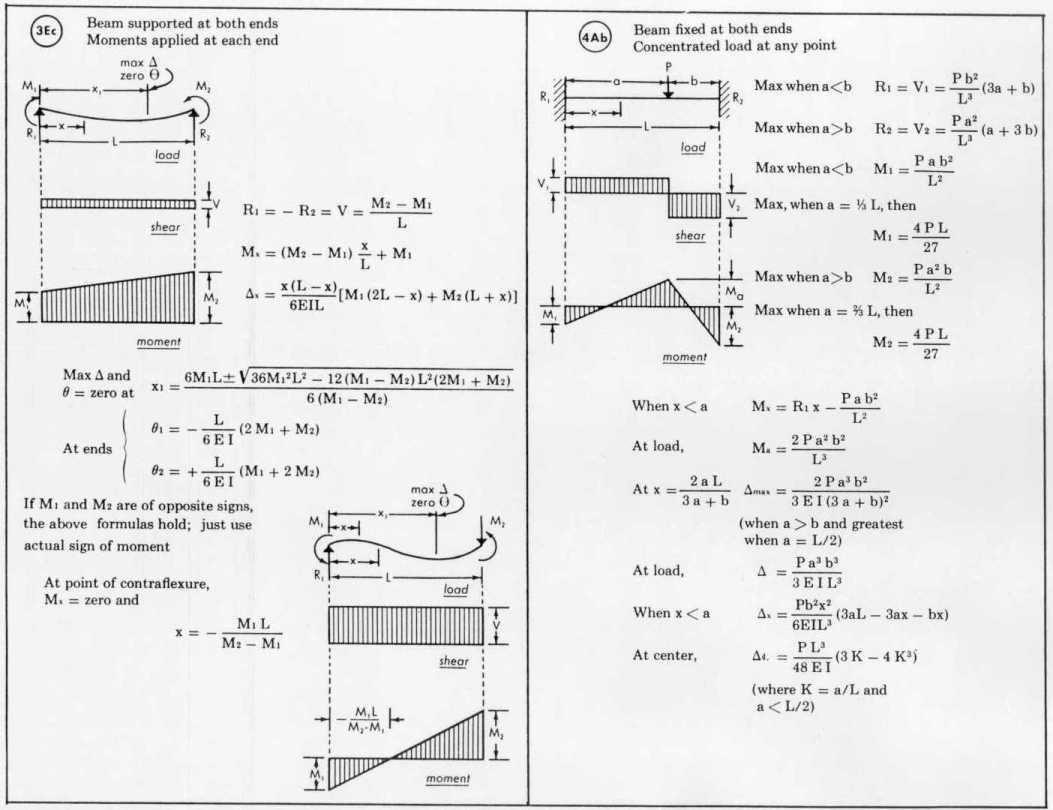

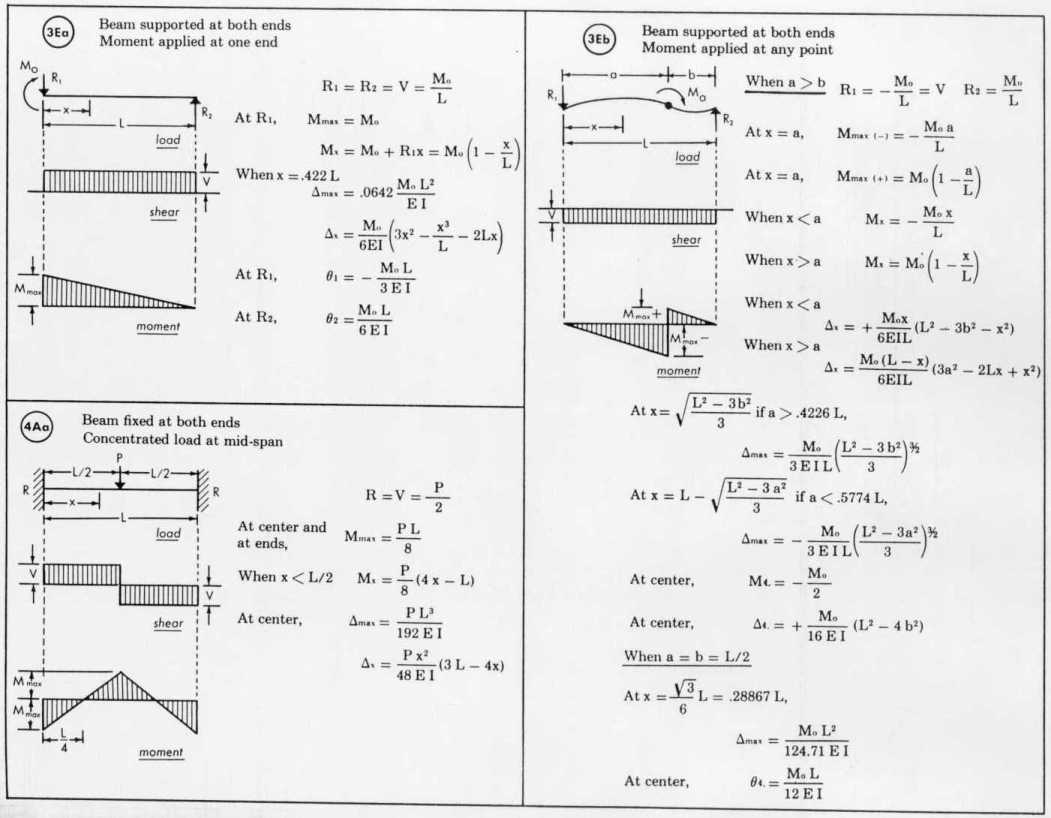

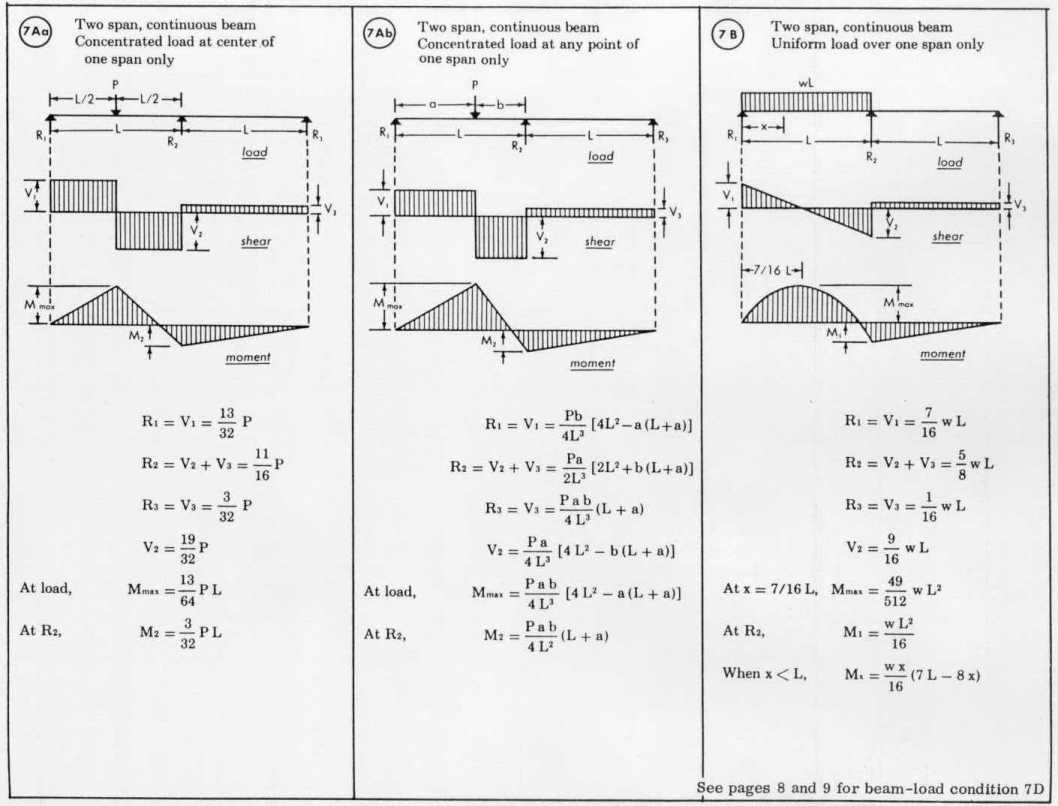

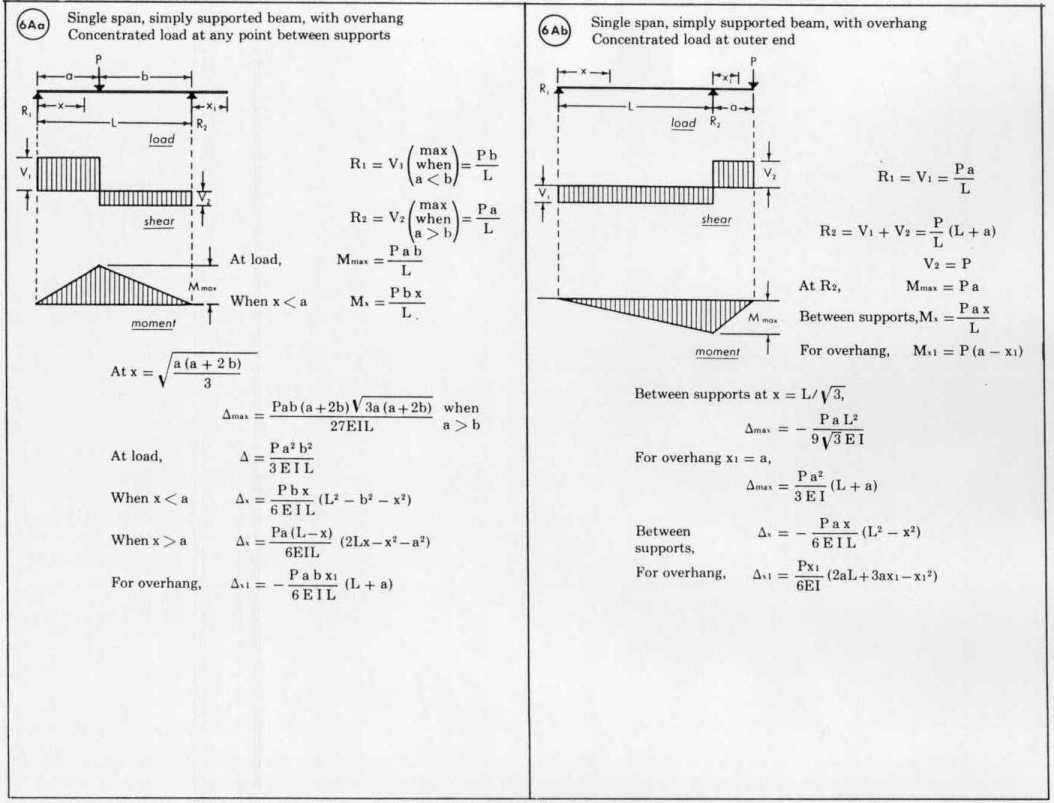

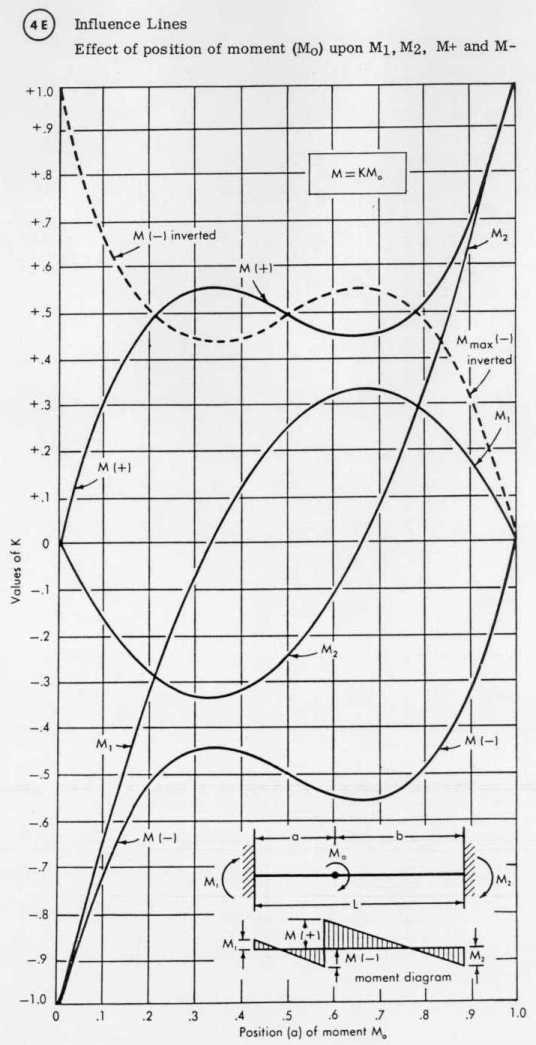

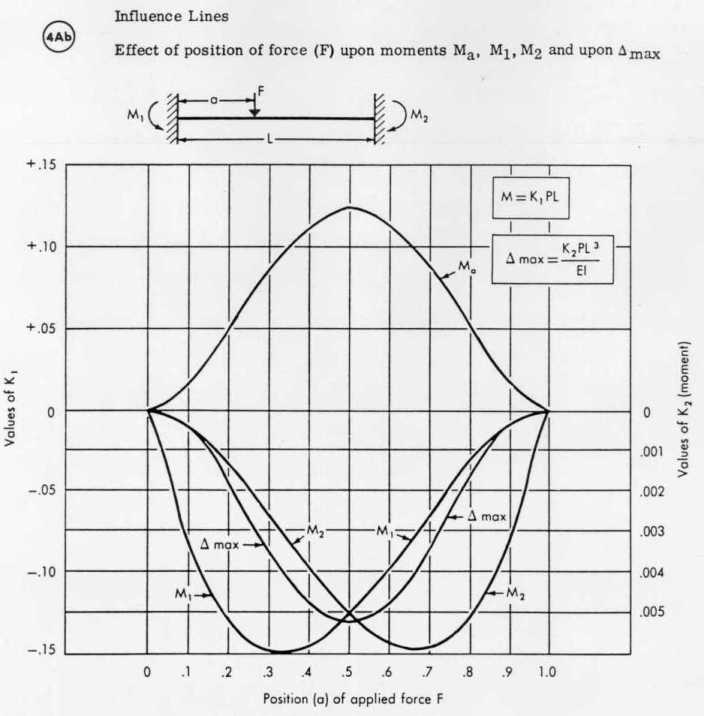

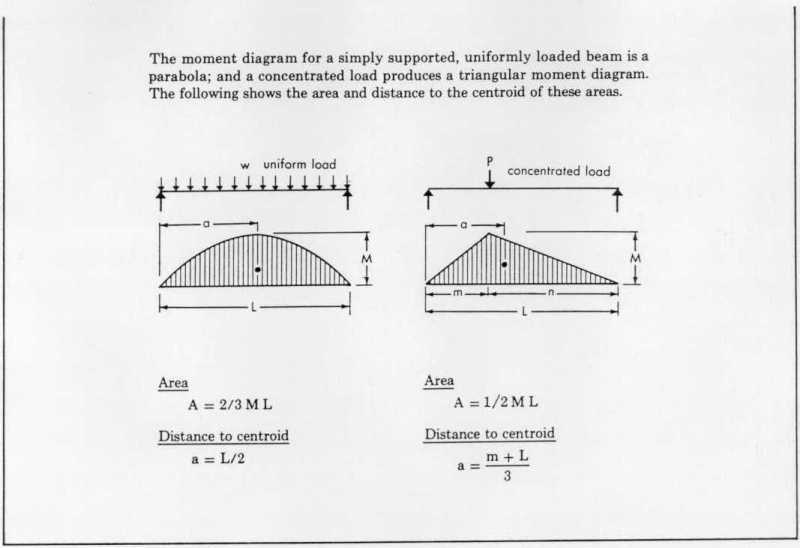

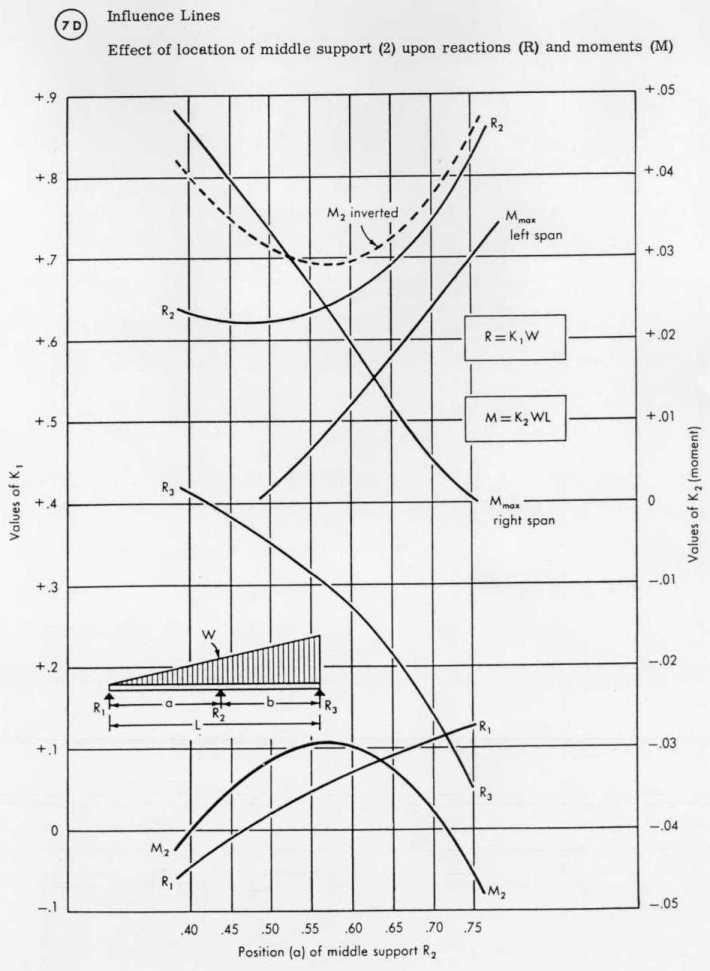

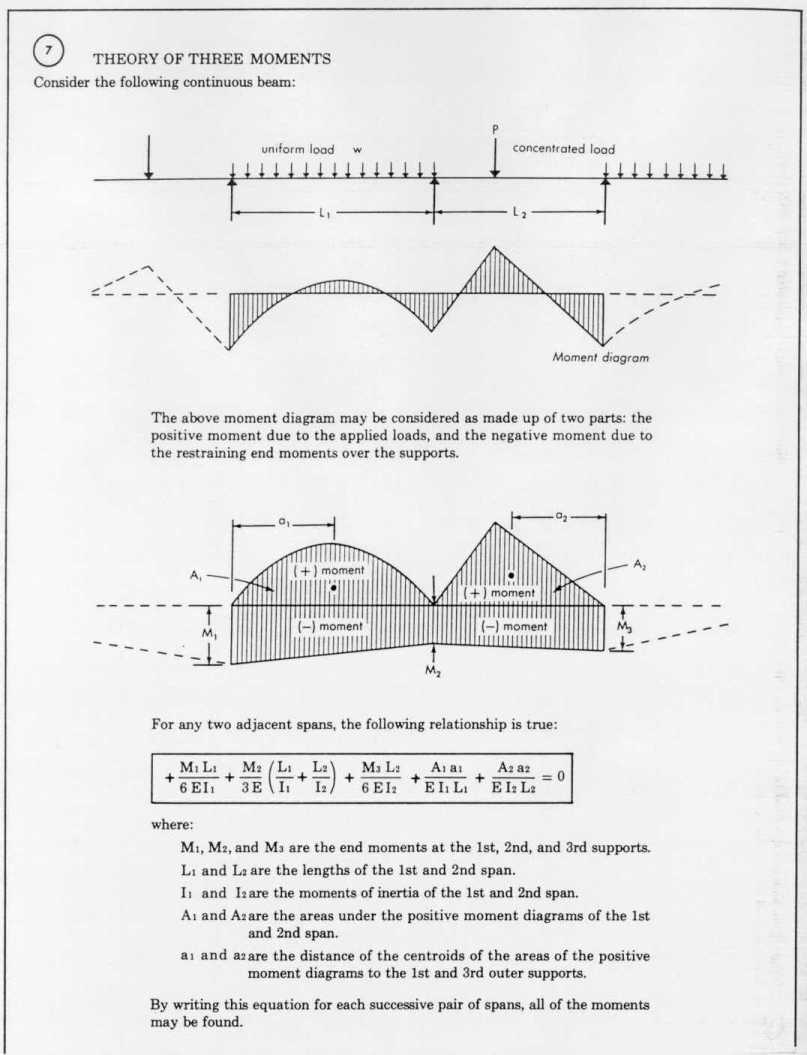

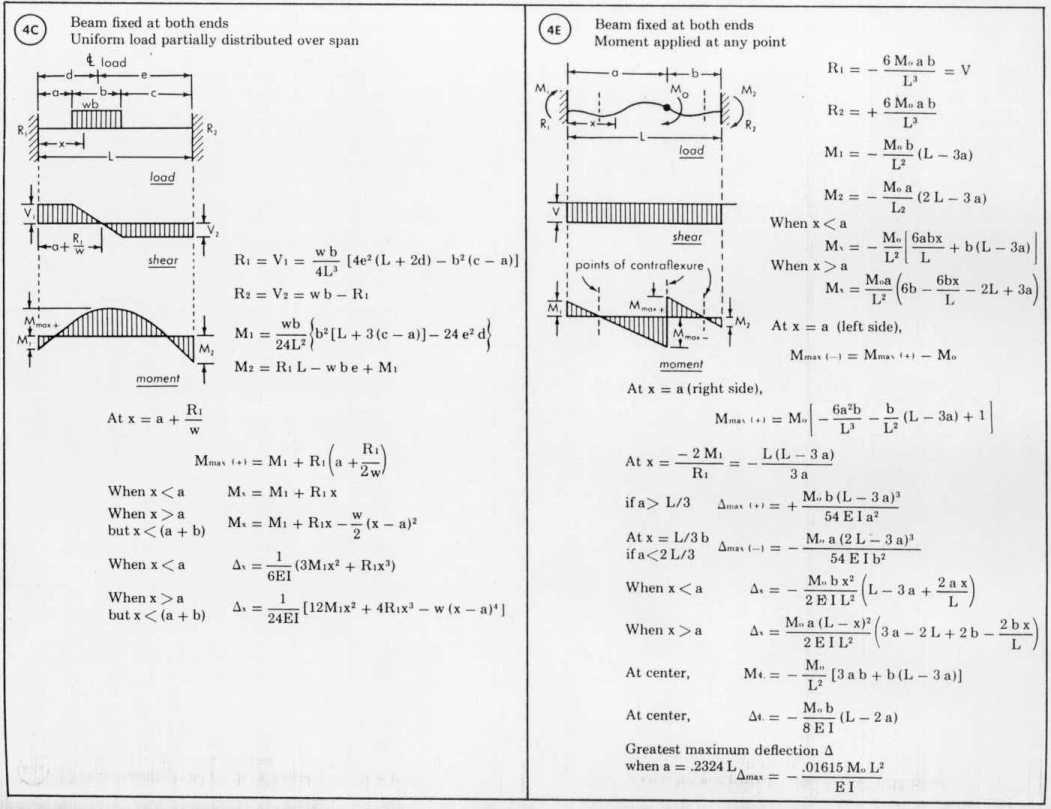

The first image presented below represents a beam loading key which should be used to identify a specific loading case and boundary conditions (e.g., 1Aa). Remaining images include formulas for reaction forces, deflection, etc., for a given case.


All figures courtesy of:
